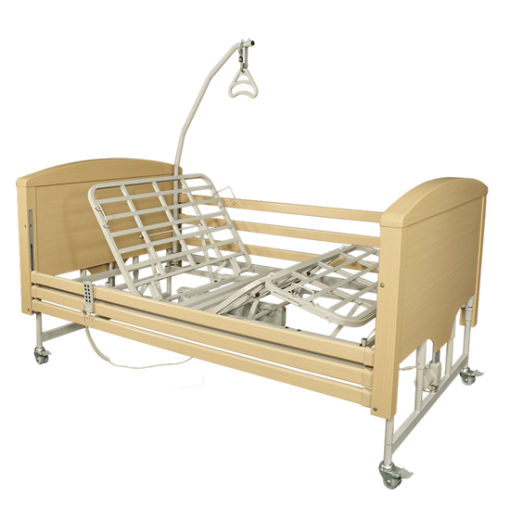

ELECTRICAL BED V-PLUS – SEMI-DOUBLE

Electrical-bed-v-plus-semi-double

• Semi-double, multi folding electrical bed, heavy duty “bariatric”, with wood covering.
• Metal sommier with bars to fit the mattress.
• The backrest tilting and the lower limbs elevation is conducted with an electric controller that locks, to prevent accidents.
• Option to tilt further a part of the backrest adjustment mechanism with safety button for the easy feeding of the patient.
• The total height of the bed is electrically adjusted at selected positions.
• Option for independent operation of the motors of the headboard or the footboard (“Trendelenburg/Anti-Trendelenburg Position”).
• Aluminum side protections, bilateral, in the color of wood, and removable.
• Patient elevation trapeze with deltoid adjustable handle which fits to both sides of the sommier.
• Backup 9V battery case, in the event of a power failure.
• Easy transport on site, thanks to the four casters with brakes, which secure independently.
• The bed has four metal sockets for the stabilization of the mattress. The assembly is easy without the use tools.

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

• Technical Characteristics
• Total bed length 220cm
• Total bed width 136cm
• Sommier Length 200cm
• Sommier Width 120cm
• Sommier elevation range from the ground 28cm to 68cm
• Maximum backrest angle 70°
• Maximum lower extremities angle 35°
• Knee angle 25°
• Maximum Patient Weight 200kg
